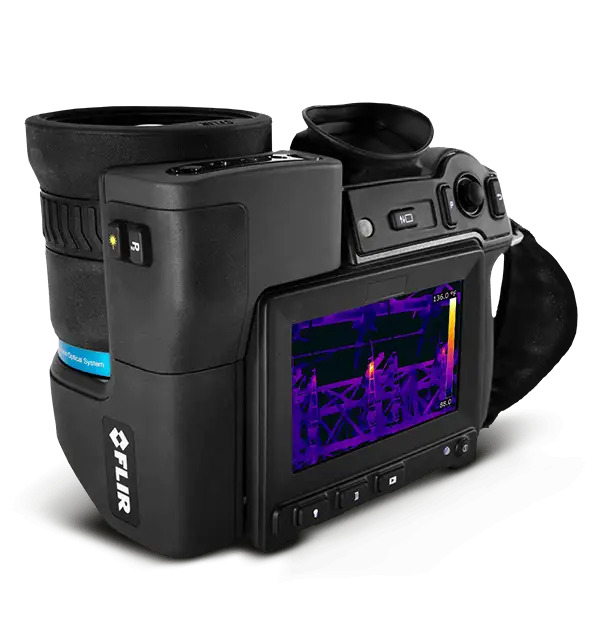

FLIR T1020

HD Thermal Camera with Viewfinder

Get ready for outstanding thermal imaging performance, built on 50 years of experience. With its remarkable range, up to 3.1 M resolution (UltraMax®), and an agile, new user interface, FLIR’s flagship T1020 is designed to streamline your workday, and make you the hero. For the sharpest images, the truest temperatures, the most flexibility—the T1020 is the ultimate result of five decades of infrared expertise. The FLIR T1020 comes with on-board Inspection Route mode so you can download and run survey plans to your camera from FLIR Thermal Studio Pro with Route Creator plugin (3-month subscription included).

Built For The Experts, By The Experts.

EXPERT FEATURES

The T1020 now offers an agile new GUI that responds like a smartphone, plus live image enhancements such as 1-Touch Level/Span.

EXCEPTIONAL MEASUREMENT PERFORMANCE

The FLIR OSX™ Precision HDIR optical system offers continuous autofocus and crisp resolution for accurate measurements, even from a distance.

COMPACT AND EASY TO USE

The T1020 has a 120° rotating optical block and bright, high-resolution LCD viewfinder, putting any target within comfortable viewing range.

FLIR T1020 Thermal Imaging Camera

Ultra High-Resolution Flagship Thermal Camera for Advanced Industrial & R&D Applications

Key Features

True native 1024 × 768 thermal detector (no interpolation)
Industry-leading thermal sensitivity (NETD < 20 mK)
FLIR Vision Processing™ with MSX®, UltraMax®, and advanced image filtering
Continuous autofocus and precision manual focus
Rotating optical block for maximum inspection flexibility
Designed for critical infrastructure, R&D, and high-end diagnostics

Main Applications

High-voltage electrical inspections
Critical infrastructure and utility maintenance
Advanced predictive maintenance programs
Research & development and laboratory analysis
Aerospace, defense, and heavy industrial environments

Imaging & Optical Specifications

IR Resolution	1024 × 768 pixels
Thermal Sensitivity (NETD)	< 20 mK at 30°C
Field of View (Standard Lens)	28° × 21°
Minimum Focus Distance	0.3 m
Image Frequency	30 Hz
Focus	Continuous autofocus, manual focus
Spectral Range	7.5 – 14 µm

Measurement

Temperature Range	−40°C to 120°C 0°C to 650°C Optional ranges up to 2000°C
Accuracy	±1°C or ±1%
Measurement Tools	Multiple spot meters, area (min/max/avg), Isotherms, Delta T, Line profile
Emissivity Adjustment	Variable from 0.01 to 1.0

Display & User Interface

Display	5-inch LCD, 1280 × 720 pixels
Touch Screen	Capacitive touchscreen
Viewfinder	Integrated OLED viewfinder
Image Modes	Thermal, MSX®, Picture-in-Picture, Digital Camera

Storage & Connectivity

Image Storage	Radiometric JPEG
Storage Media	Removable SD card
Interfaces	USB, HDMI, Wi-Fi, Ethernet
Software Compatibility	FLIR Thermal Studio, ResearchIR

Power System

Battery Type	Rechargeable Lithium-ion battery
Operating Time	Approx. 2.5 – 3 hours per battery
Battery System	Replaceable, hot-swappable
Charging	In-camera or external charger

Physical & Environmental

Weight	Approx. 1.7 kg (including battery)
Protection Rating	IP54
Drop Test	2 m
Operating Temperature	-15°C to 50°C
Storage Temperature	-40°C to 70°C

Specifications are subject to change without notice. FLIR, MSX®, UltraMax®, and Vision Processing™ are trademarks of Teledyne FLIR LLC.
